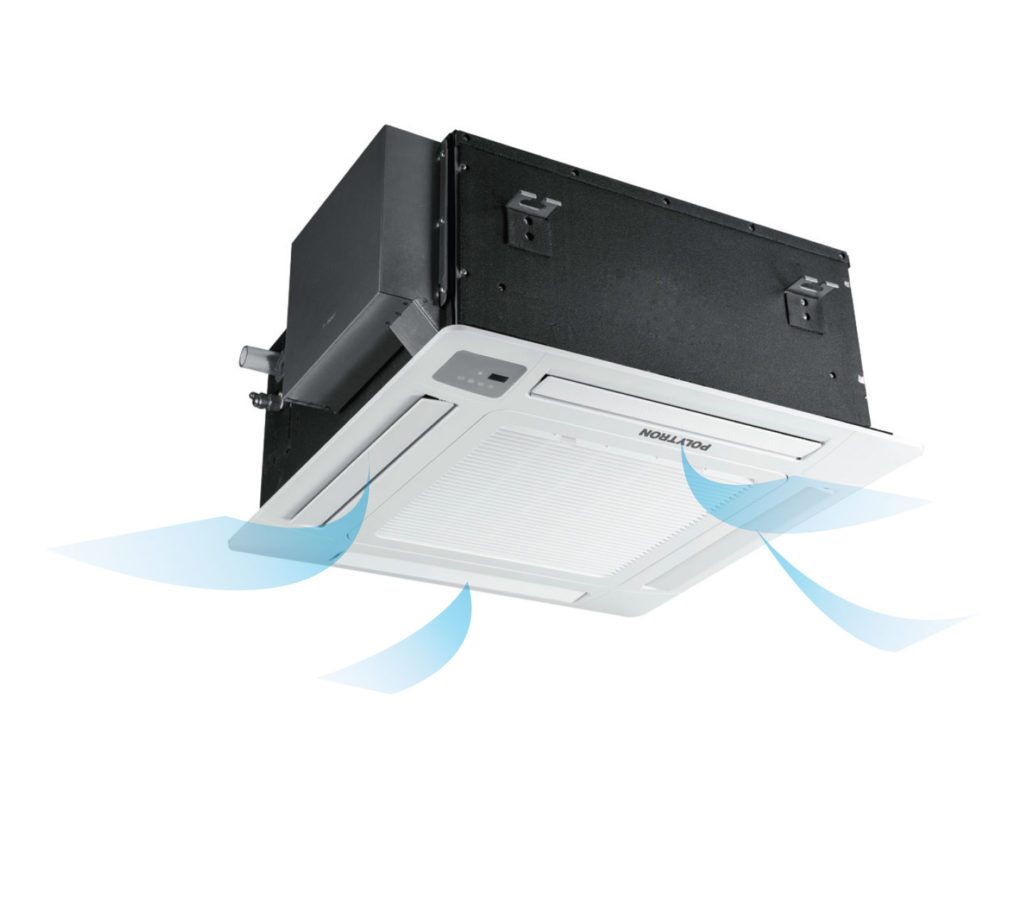

Teknologi Stream Flow Pada AC Cassette Neuva
Dimensi sirip angin lebih besar dengan sudut gerak yang lebih lebar, mengoptimalkan pendinginan ke seluruh ruangan.

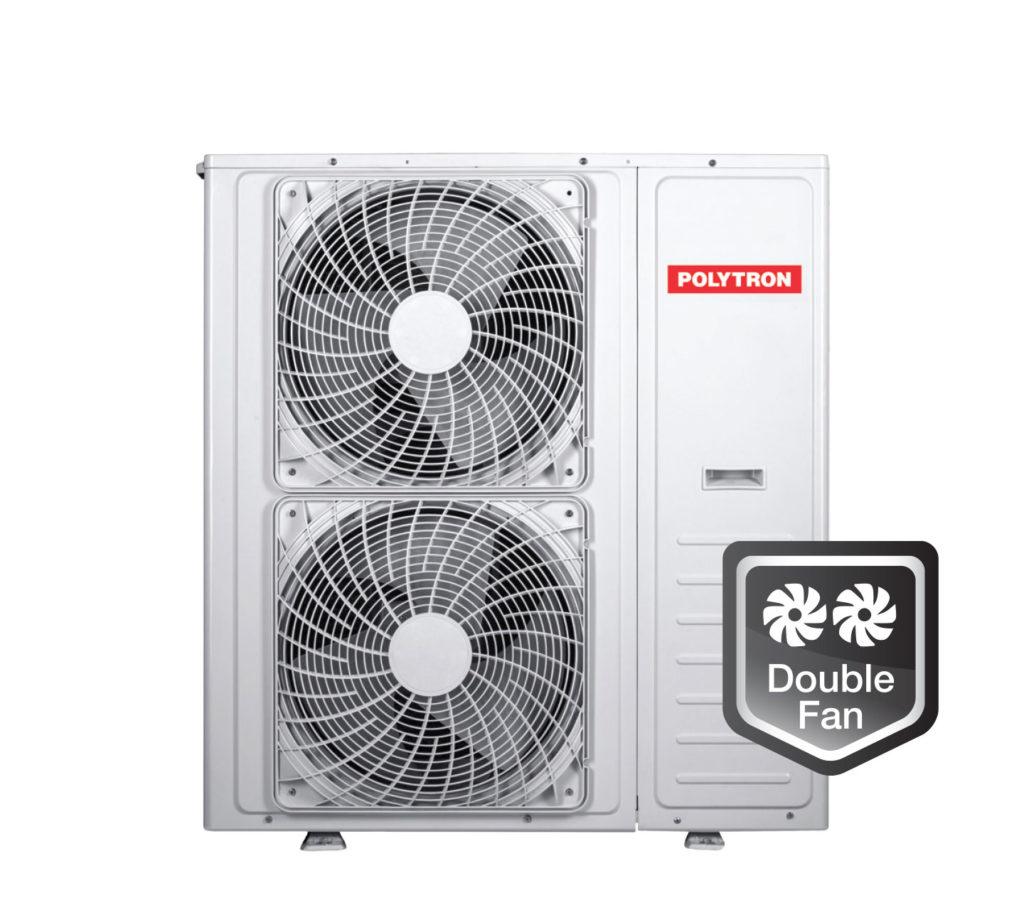

Double Fan Pada AC Cassette
Pendinginan lebih cepat hingga 15% dibandingkan dengan outdoor single fan *Khusus tipe PCT 5032
Active Cleaning Function
Fitur ini dapat mencegah dan mengurangi koloni jamur, bakteri, serta endapan debu yang menempel pada evaporator.
Easy Maintenance & Installation
Front panel mudah dilepas dan filternya mudah dicuci, serta proses instalasi dan penyambungan pipanya sangat sederhana.
Width (Panel)
950 mm
Height (Panel)
950 mm
Depth (Panel)
50 mm
Width (Indoor Unit)
840 mm
Height (Indoor Unit)
840 mm
Depth (Indoor Unit)
240 mm
Width (Outdoor Unit)
780 mm
Height (Outdoor Unit)
540 mm
Depth (Outdoor Unit)
260 mm
Weight (Outdoor Unit)
34 kg
Weight (Indoor Unit)
23,5 kg
Weight (Panel Unit)
6,5 kg
Pipe Connection
1/4″ 1/2″
Power Source
220V / 50Hz
Rated Power
1.600 Watt
BTU/H
18.000
Refrigerant
R32
Width (Panel)
950 mm
Height (Panel)
950 mm
Depth (Panel)
50 mm
Width (Indoor Unit)
840 mm
Height (Indoor Unit)
840 mm
Depth (Indoor Unit)
240 mm
Width (Outdoor Unit)
860 mm
Height (Outdoor Unit)
665 mm
Depth (Outdoor Unit)
310 mm
Weight (Outdoor Unit)
46 kg
Weight (Indoor Unit)
23,5 kg
Weight (Panel Unit)
6,5 kg
Pipe Connection
3/8″ 5/8″
Power Source
220V / 50Hz
Rated Power
2.300 Watt
BTU/H
24.000
Refrigerant
R32
Width (Panel)
950 mm
Height (Panel)
950 mm
Depth (Panel)
50 mm
Width (Indoor Unit)
840 mm
Height (Indoor Unit)
840 mm
Depth (Indoor Unit)
240 mm
Width (Outdoor Unit)
950 mm
Height (Outdoor Unit)
1050 mm
Depth (Outdoor Unit)
340 mm
Weight (Outdoor Unit)
77 kg
Weight (Indoor Unit)
29 kg
Weight (Panel Unit)
6,5 kg
Pipe Connection
3/8″ 3/4″
Power Source
380V / 50Hz
Rated Power
3700 Watt
BTU/H
42.000
Refrigerant
R32
