Video Wall

Beli

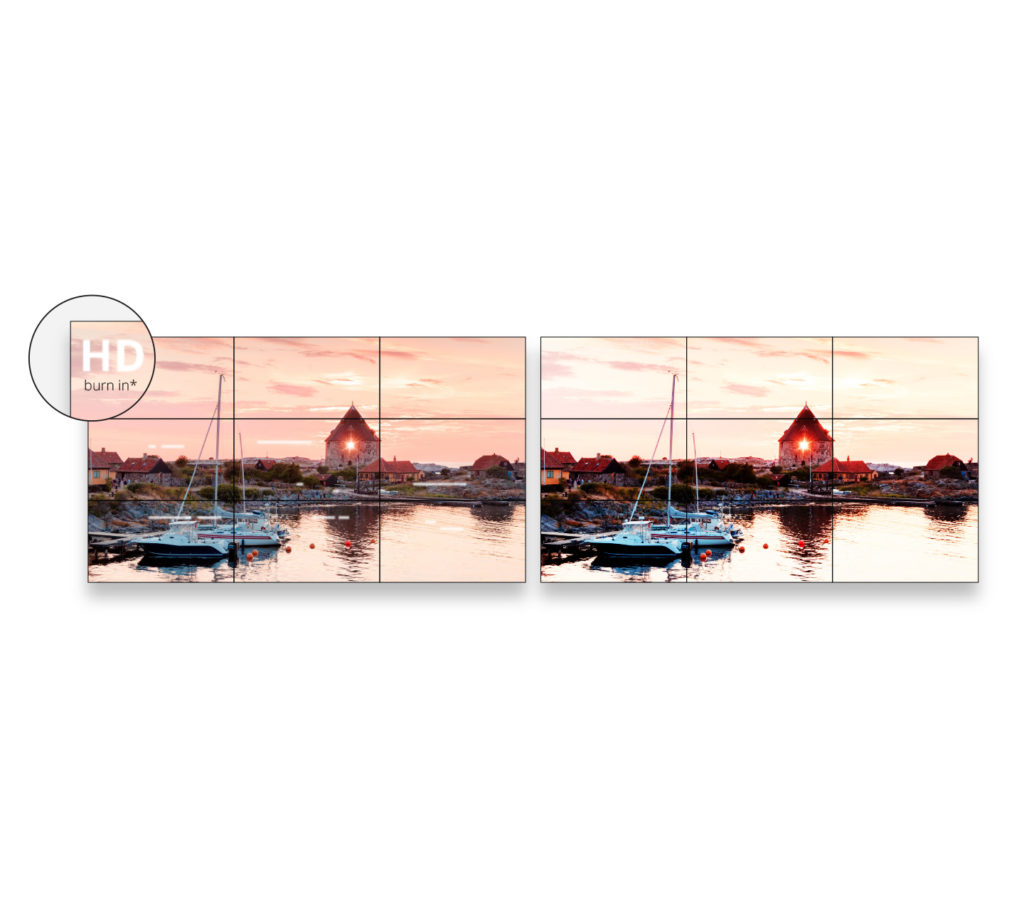

Still Image Protection

The anti-burn function (in the form of point, line and plane protection) can prevent the screen from getting damage when a still image is displayed for a long period of time

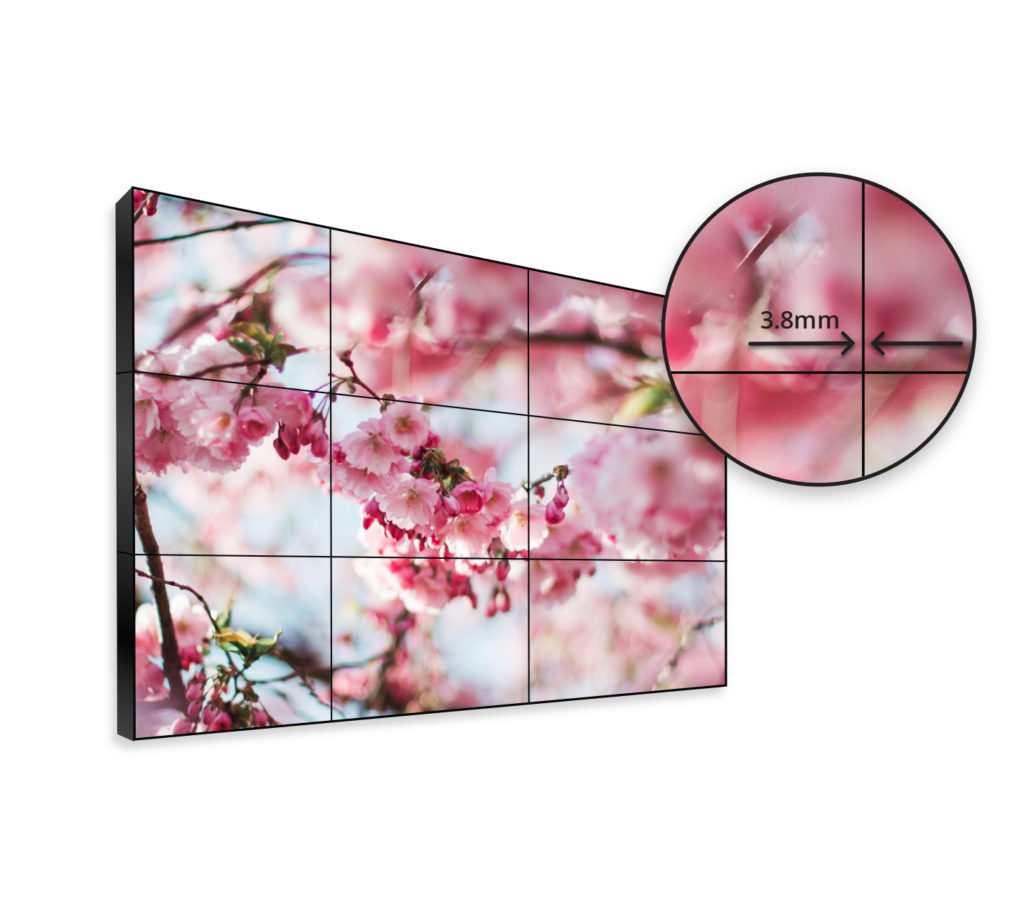

Frame Compensation Function

Display compensation is added to the seam area of spicing units to effectively reduce the fault phenomenon of pictures and enhance the sense of picture continuity on spliced screen

Frame Compensation Function

Display compensation is added to the seam area of spicing units to effectively reduce the fault phenomenon of pictures and enhance the sense of picture continuity on spliced screen



High-end splicing

display panel



Still image

protection



Frame compensation

function



User-friendly

Interface



Easy-to-operate

client control software



Auto Standby

Mode

   OS Function

   Chipset

    TSUMV59

FHD Display

8/10 bit dual LVDS display

Gamma Correction

12-bit RGB gamma correction

   OS Update

   USB update

   Display

   Panel

   55″

Max resolution

1920 x 1080 (pixels)

Pixel pitch (Sub Pixel)

0.630(H) x 0.630(v) (mm)

   Brightness (typ.)/(min)

   500 cd/m2 (typ.)

Ratio (typ.)

1400 : 1 (typ.)

Chroma

1.06B (10bit)

   Response time (ms)

   8ms (typ.)

Viewing area

1073.8(H) x 603.9 (v) (mm)

Viewing angle

178 (H) / 178 (V)

   Life time (typ.)/(min)

   60.000 hrs (typ.)

Color Gamut (X% NTSC)

72%

   Environment

   Working temperature

   0 – 40 C

Working humidity

20% – 80% RH Non-Condensing

Storage temperature

-20 – 60 C

   Storage humidity

   10% – 90 RH Non-Condensing

   Power

   Power supply

   110 – 240Vac. 50-60Hz

Power consumption

< 220 Watt

Power standby mode

< 0,5 Watt

   Connectivity

   HDMI IN connections

    1

DVI IN connections

1

VGA IN connections

1

   S-VIDEO IN

   1

VIDEO IN connections

4

VIDEO OUT connections

1

   RS232 IN connections

   1

RS232 OUT connections

1

USB IN

2

   YPbPr/YCbCr IN

   1

Audio INL/R

1

Audio Out L/R

1

   ID and Material

   Housing Material

   metal cover

Housing Color

black

   Weight

   Net weight

   27.5 Kg + 1.5 Kg

Gross weight

84 Kg + 1.5 Kg (2Pcs in 1 flight case)

   Dimensions (WxDxH)

   Bare dimension (WxDxH)

   1213.40 x 114.85 x 684.20 (mm)

Package dimension (WxDxH)

1415 x 520 x 895 (mm) (2pcs in 1 flight case)

Bezel width (T/B/L/R)

2.45 / 1.35 / 2.45 / 1.35 (mm)

   Accessary

   Remote Control

   1

Power Cord

1

RS 232 Cable

1
