3-ways acoustic system integrated

Our patent “eXtended Passive Radiator/XBR”. The XBR extend and increase sound pressure level (SPL) at low frequency, the result: the bass sound deeply, loudly, and clearly. Unlike another flat panel on the market, the XBR is actualy a photo/picture itself.

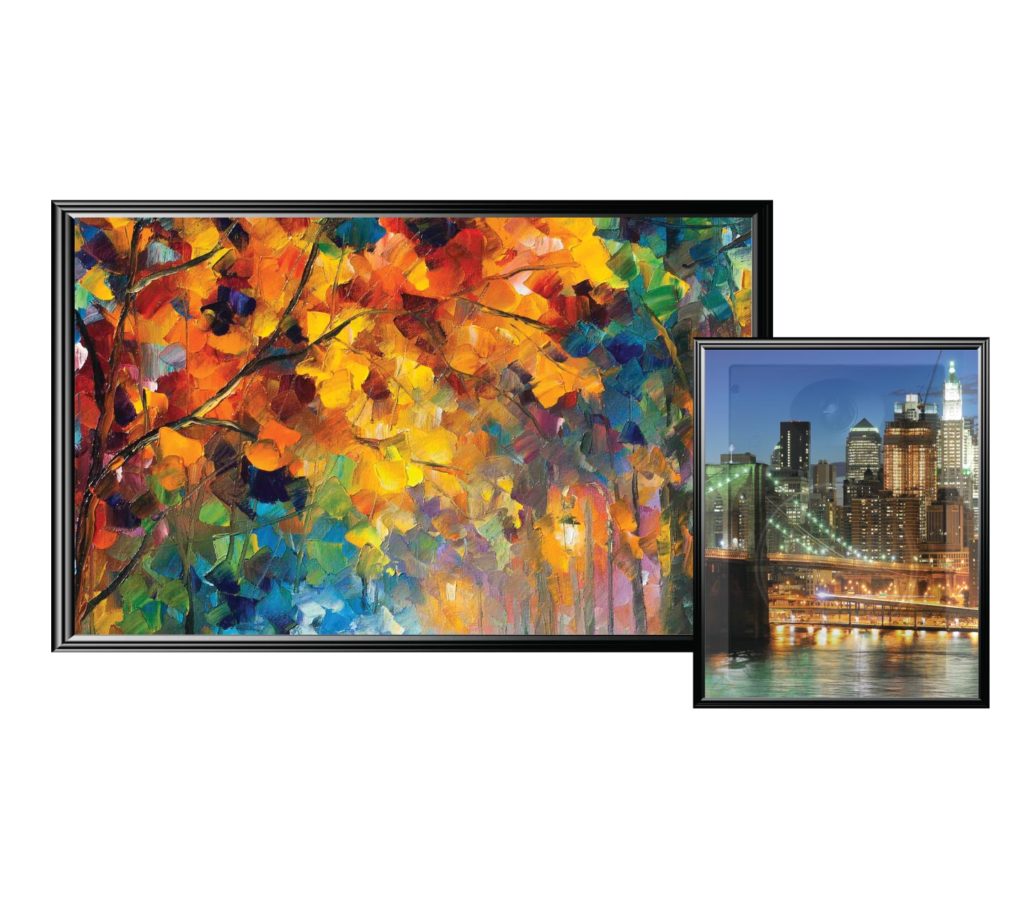

Concure with Modern Interior Design

SOUNDiMAGE can easily blend into your modern interior office or living room, with its interchangeable canvas, it can suit your taste of art

Wider frequency response

The frequency response range is 40 Hz – 20 kHz and power output is 50 – 200 Watt rms. It mean the SoundIMAGE has wider frequency response and higher power output. The all music genre will sound impressivelly.

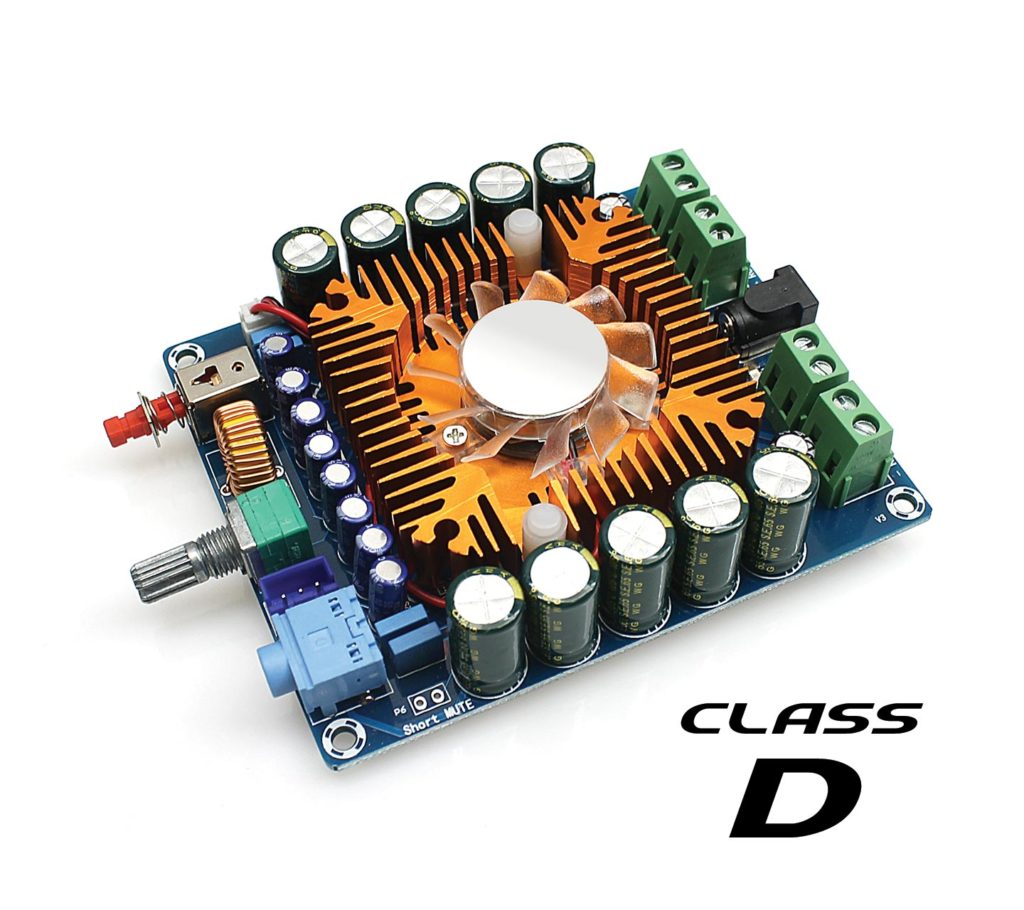

Class D Power Amplifier

Using an efficient Class-D amplifier.

Fully Protection

Various protections are overcurrent (over current), overvoltage (over voltage), overheating (over heat) keep the product durable in the long term. There is a resettable fuse to protect the tweeter from damage due to excessive sound feedback when using a mic.

3 Band Tone Control

Tone control 3 bands (Treble / Mid / Bass) that are simple and easy to set for various listening room conditions. The special design of a low noise mic pre-amplifier produces clean and clear vocal sound, ideal for singing or speech.


2 x 200 Watt

Power Output


116 dB

Maximum SPL



2-Way Speaker System


Xtended Passive








   Acoustical Tuning

   Passive Radiator


2 Way

Normal Impedance

8 Ohm

   Frequency Response (-3dB)

   50 – 20 kHz

Maximum SPL

116 dB

Opening Angel


   LF Transducer

   4 x 4 in / 254mm

HF Transducer

2 x Silk Dome 1.7 in / 43mm

Passive Radiator

8 x 4 in

   Cross Over Point

   4 kHz

Loundspeaker Power Handling

100 W RMS


   Power Output

   2x100W RMS / 2x200W Peak


Over Current/Voltage/Heat/HF




Remote Control


   Line Input Sensitivity


Un-Balanced (RCA)

-6.9 dBu / 0.35 V rms





BT3, Simple Pairing

Radio FM

87.5 – 108 Mhz, Auto

  LED Indicator

  Power / Signal


  Dimension (HxWxD)

  761x476x50 mm

Net Weight

5.5 Kg
