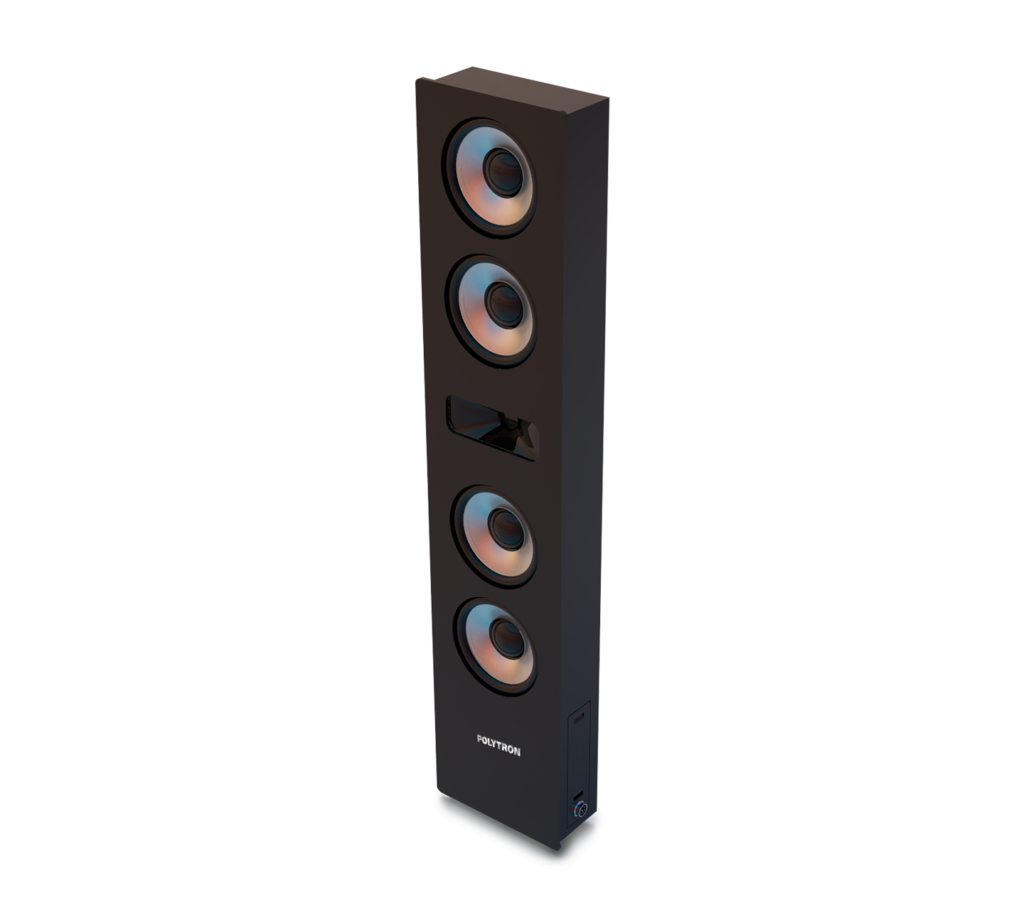

Smart Loudspeaker

Beli

All-in-One Home Entertainment

The embedded Android lets you enjoy a variety of both Offline and Streaming videos (Youtube, Mivo etc.). Film and Music (Spotify, Joox etc.), world radio, world live tv or even games.

Wide dynamic range

Smart Loudspeaker has a wide dynamic range. It can produce frequencies up to 50 Hz, it no longer requires a subwoofer. With our patent consisting of 2 units of 5 Inch eXtended Passive Radiator (XBR) combined with a 5 inch high and linear deviation woofer. Low frequencies can be reduced to 35 Hz with electronic boosting. While the compression tweeter produces clear and clear music sound.

Precision Cross Over

Crossover is designed carefully after all the woofer and tweeter acoustic parameters are best obtained so that the acoustic phase is obtained accurately so that the sound sounds coherent.

Class D Power Amplifier

Using an efficient Class-D amplifier.

Fully Protection

Various protections are overcurrent (over current), overvoltage (over voltage), overheating (over heat) keep the product durable in the long term. There is a resettable fuse to protect the tweeter from damage due to excessive sound feedback when using a mic.



2 x 25 WRMS

Power Output



89 dB

Maximum SPL



Bass & treble

Control



Class D

Power Amplifier



Full

Protection

   ACOUSTICAL

   Acoustical Tuning

   Passive Radiator

System

2 Way

BANDWIDTH

8MHZ

   Frequency Response (-3dB)

   45 -20 kHz

Maximum SPL

89 dB

SUBTITLE

Subtitle Available

   HF Transducer

   compression 1.7 in / 43 mm

Passive Radiator

2 x 5 in / 380 mm (XBR)

Cross Over Point

1.7 kHz

   AMPLIFIER

   Power Output

   2 x 25 W RMS

Amp Class

Class D

Protection

Over Current/Voltage/Heat/HF

   DC Input

   19 V / 3 A

   CONTROL SECTION

   Volume Line In/Mic/Master

   ✓

   Treble

   10 kHz +/- 12 dB

Middle

1 kHz +/- 12 dB

   Bass

   100 kHz +/- 12 dB

Remote Control

✓

   INPUT/OUTPUT

  Line Input Sensitivity

  -6.9 dBu / 0.35 V RMS

AV Out Analog Out

✓

HDMI Out

Ver. 1.4

   USB Port

   2

Optical Output / SPDIF

1

Infra Red Reciver

✓

   DC Input

   5V / 2A

LED Indicator

Power / Signal

   MULTIMEDIA PLAYER

   Audio Codec

   MAV / MP3 / FLAC / etc.

Video Codec

MP4 / MKV / etc.

Bluetooth

A2DP/L2CAP/AVRCP

   BT3, Simple Pairing

Radio FM

87.5 – 108 Mhz, Auto

   CABINET

   Material

   MDF + Acrilyc

Grill

Cloth / Perforated Steel

Finish

Painted

   Color

   Black

Mounting

Wall / Table Stand

   PHSYCAL

   Dimension (HxWxD)

Net Weight
