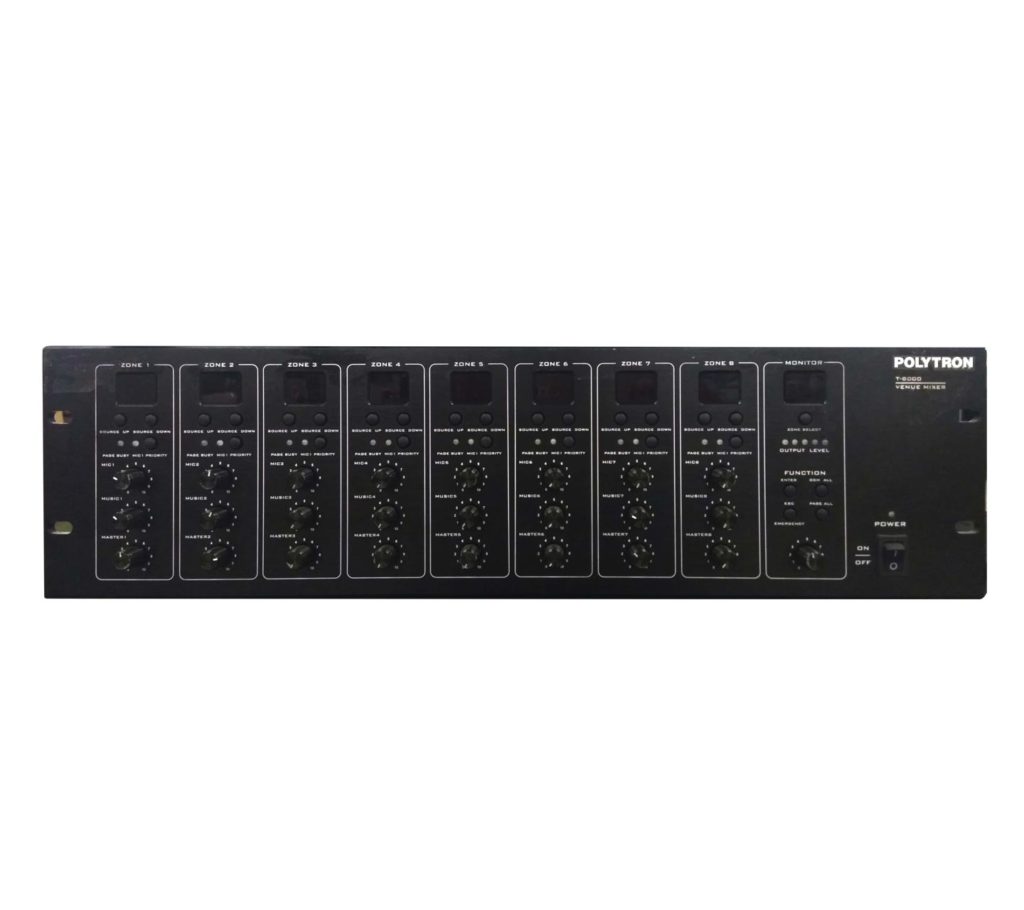

Public Address Matrix 8 Channel

Beli

Noise Free

Power output with very low noise above 100 dB at maximum level produces maximum sound quality.

Various Protection

It is equipped with pressure protection, DC output, short circuit, impulse current when on and off and other circuit protection ensures users are safe.

LED Indicator

Various signal, limit and protection LED indicators to find out the working conditions of amplifiers.

Dual Fan (auto)

Keep the temperature under normal conditions.

Various Input Amplifier Mode

Stereo, mono, bridge, grounding lift, float switch and input sensitivity options can be set. Complete input / output connectors such as TRS Jack, Speakon, Binding posts.



>65 dB

Crosstalk



Tone

Control



LED

Indicator



   AMPLIFIER

   Line 1-4 Input

   195mV -2V/10K Ohm

Line 5-7 Input

Mic: 5 mV/600

Line: 350 mV3/10K

Phantom Power: +48V

Microphone 1

5-280 mV/600 Ohm

Remote Paging Station

300 mV-1.1 V/10K Ohm

Remote Control Panel

300 mV-1.1 V/10K Ohm

Tone Control

100Hz- 10dB, 10KHz 10dB

Output

0.775V/600 Ohm

Frequency Response

Mic: 80Hz~18KHz(+-3dB),

line: 20Hz~20KHz(+-3dB)line: 20Hz~20KHz(+-3dB)

EMC Input

775 mV/10K Ohm

Microphone S/N Ratio

>65 dB

Line S/N Ratio

>85 dB

Degree Of Separation

>40 dB

   Crosstalk

   >65 dB

THD

<0.07%

Indicator

Power, Mic 1, paging busy & monitor output

   Priority

   Mic 1, voice alarm, local mic paging, remote zone paging

Communication Speed

4800bps

Communication Port

Rj45

   Communication Protocol

   RS485

Power Consumtion

20W

Power Supply

~110V/60Hz and ~240V/50Hz & DC 24V

   PHYSICAL

   Dimension (HxWxD)

   484 x 304 x 132mm

Net Weight

6Kg
