Smooth and accurate reproduction of sound

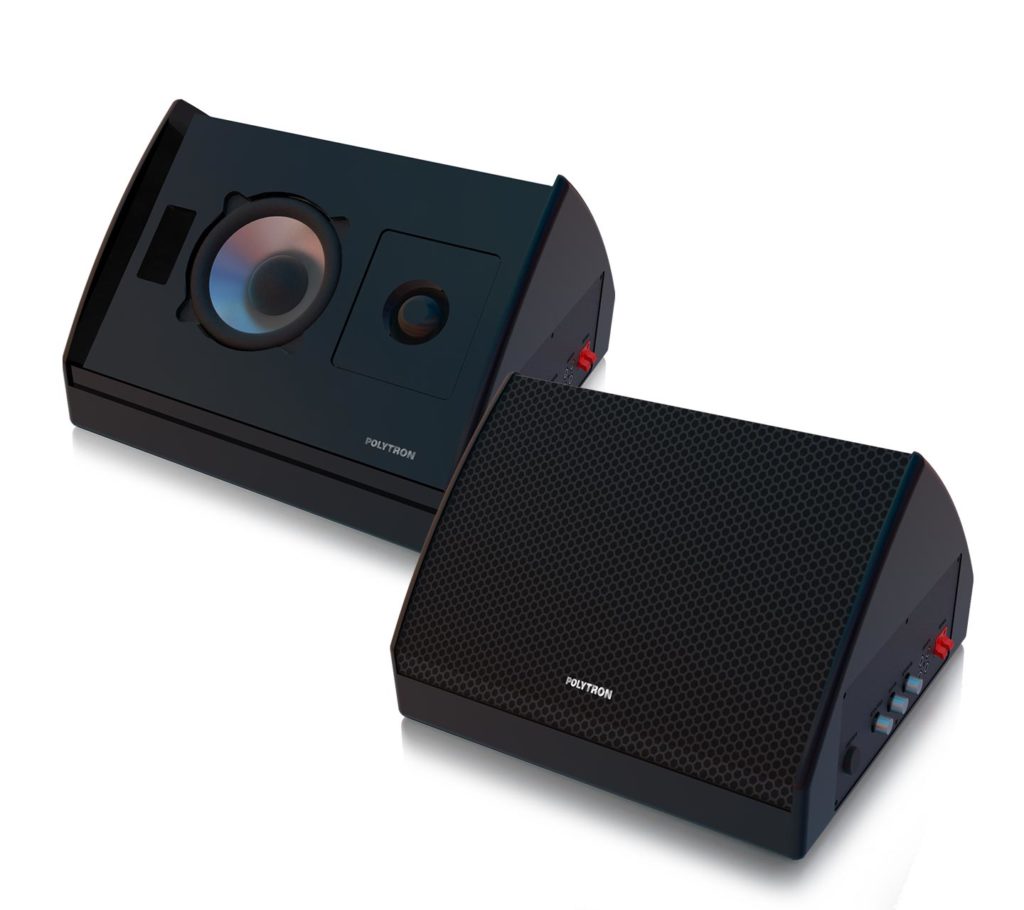

This Two-Way Speaker systems provide smooth and accurate reproduction of sound while being compact and very cost-effective. All models offer the low-distortion Speaker for clear, accurate reproduction of the mid and high frequencies.
Precision Cross Over
Crossover is designed carefully after all the woofer and tweeter acoustic parameters are best obtained so that the acoustic phase is obtained accurately so that the sound sounds coherent.
Class D Power Amplifier
Using an efficient Class-D amplifier
Fully Protection
Various protections are overcurrent (over current), overvoltage (over voltage), overheating (over heat) keep the product durable in the long term. There is a resettable fuse to protect the tweeter from damage due to excessive sound feedback when using a mic.
3 Band Tone Control
Tone control 3 bands (Treble / Mid / Bass) that are simple and easy to set for various listening room conditions. The special design of a low noise mic pre-amplifier produces clean and clear vocal sound, ideal for singing or speech.
200 Watt
Power Output
LED
Indicator
Full
Protection
Tuner
Volume Line In/Mic/Master
Sturdy
Enclosure
Acoustical
Acoustical Tuning
Passive Radiator
System
2 Way
Normal Impedance
8 Ohm
Frequency Response (-3dB)
80 – 20 kHz
Maximum SPL
–
Opening Angle
120’x80′
LF Transducer
2 x 5 in / 127 mm
HF Transducer
2 Silk Dome 1 “/25 mm
Passive Radiator
–
Cross Over Point
–
Loudspeaker Power Handling
–
Amplifier
Power Output
100 W RMS / 200 W Peak
Protection
HF (Resettable Fuse)
Control Section
Volume Line In/Mic/Master
√
Input/Output
Line Input Sensitivity Un-Balanced (RCA)
-6.9 dBu / 0.35 Vrms
Line Input Sensitivity Balanced (XLR)
1.4 dBu / 1.2 Vrms
LED Indicator
Power / Signal
Cabinet
Material
MDF
Grill
Perforated Steel (Full Front Cover)
Finish
Textured Painted
Color
Black/White
Handle
–
Mounting
Wall Mounted
Physical
Dimension (HxWxD)
350 x 340 x 226 mm
Net Weight
5.5 Kg
