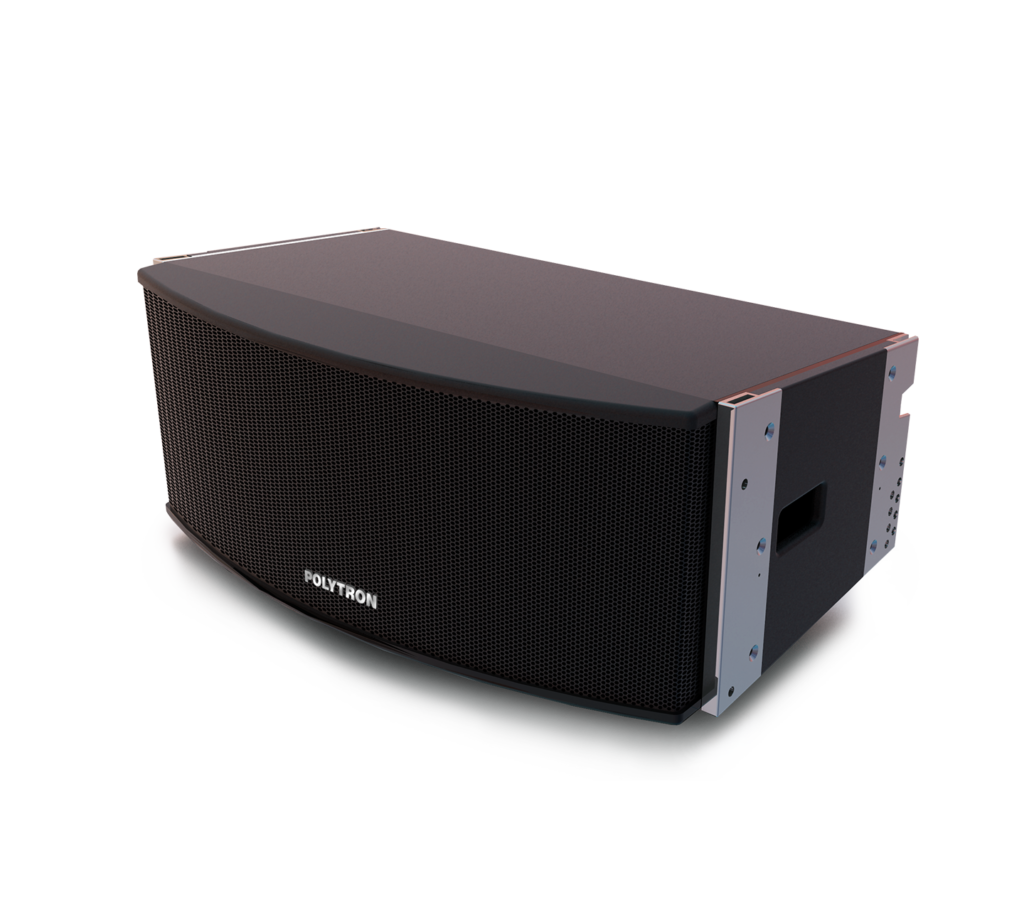

Active Line Array Speaker

Beli

Offering the same user-friendliness and sound quality of its DVA predecessors, this Active Line Array System sets the new benchmark for high-end sound performance thanks to the innovative Master+Slave design which backs high SPL in incredibly small dimensions and weight. A super versatile system for both portable and permanent installation solutions.

Precision Cross Over

Crossover is designed carefully after all the woofer and tweeter acoustic parameters are best obtained so that the acoustic phase is obtained accurately so that the sound sounds coherent.

Class D Power Amplifier

Using an efficient Class-D amplifier.

Fully Protection

Various protections are overcurrent (over current), overvoltage (over voltage), overheating (over heat) keep the product durable in the long term. There is a resettable fuse to protect the tweeter from damage due to excessive sound feedback when using a mic.

3 Band Tone Control

Tone control 3 bands (Treble / Mid / Bass) that are simple and easy to set for various listening room conditions. The special design of a low noise mic pre-amplifier produces clean and clear vocal sound, ideal for singing or speech.



1200 Watt

Power Output



Control

Volume Line In/Mic/Master



128 dB

Maximum SPL



Full

Protection



1.7 kHz

Cross Over Point



Sturdy

Enclosure

   Acoustical

   Acoustical Tuning

   Bass Reflex

System

2 Way

Normal Impedance

8 Ohm

   Frequency Response (-3dB)

   55 – 20 kHz

Maximum SPL

128 dB

Opening Angle

110′ x 60′

   LF Transducer

   2 x 12 in / 300 mm

HF Transducer

Compression 1.7 in / 43 mm

Cross Over Point

1.7 kHz

   Loudspeaker Power Handling

   –

   Control Section

   Volume Line In/Mic/Master

   √

Treble

–

Middle

–

   Bass

   –

Remote Control

–

   Input/Output

   Line Input Sensitivity Un-Balanced (RCA)

   -6.9 dBu / 0.35 Vrms

Line Input Sensitivity Balanced (XLR)

1.4 dBu / 1.2 Vrms



Mic Input Sensitivity Un-Balanced (TRS)

-34.2 dBu / 0.015 Vrms

   Mic Input Sensitivity Balanced (XLR)

   -34.2 dBu / 0.015 Vrms

SD/MMC/USB Host

–

Bluetooth

–

   Radio FM

   –

LED Indicator

Power / Signal

   Cabinet

   Material

   MDF

Line Input Sensitivity Balanced (XLR)

1.4 dBu / 1.2 Vrms

Mic Input Sensitivity Un-Balanced (TRS)

-34.2 dBu / 0.015 Vrms

   Color

   Black / White

Handle

2

Mounting

Riging / Wall

   Physical

   Dimension (HxWxD)

   800 x 315 x 490 mm

   Net Weight

   39.7 Kg
