VRF Wall Mounted Indoor

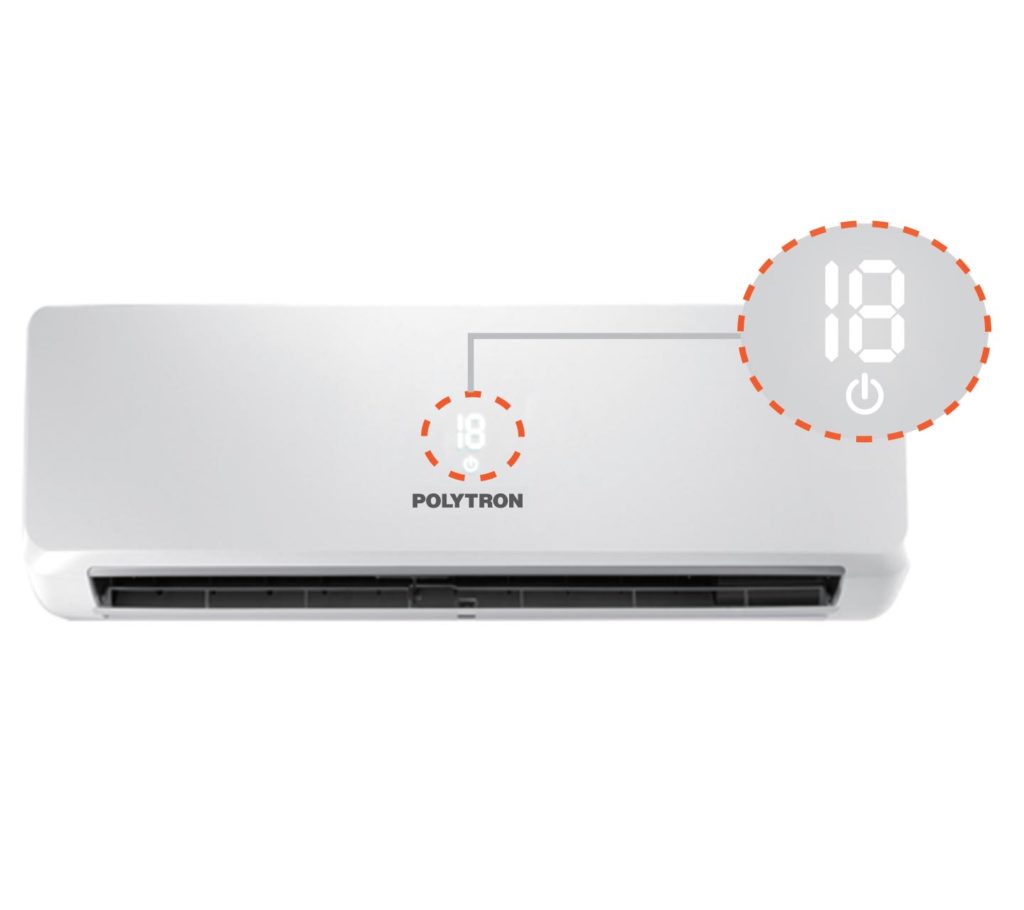

Elegant Smooth Panel Design with Hidden LED Display

The quality of “elegance” is additionally provided to meet contemporary needs. Features a simple, smooth form that harmonizes with any interior style. Smooth panel design can be cleaned easily.

Free Installation

Water drain pipe can be set either left or right sides of the unit Connection pipe can be set in left, right or back side of the unit

Antil-Mold

Filter

Compact and Light Weight

For Easy Installation

Quiet Operation

MPEG 1/2 layer 1/2

Specification

Nominal Cooling Capacity

2.2KW, 7500 Btu/h

Nominal Heating Capacity

2.5KW, 8500 Btu/h

Motor Power

50 W

Indoor Fan Air Flow Rate (High/Medium/Low/Mute)

660/590/520/460 m³/h

Sound Pressure Level (High/Medium/Low/Mute)

39/34/32/28 dB(A)

Refrigerant

R410A(Nitrogen-charged for Corrosion-resistance)

Piping Connection

Flare-nut Connection(with Flare Nuts)

Wireless Remote Controller/Receiver

HYE-L01+Receiver

Wired Remote Controller

Option

Fan motor

PG Fan motor

Drain Pump

Power & Dimension

Outer Dimensions (HxWxD)

315×960×230 mm

Net Weight

13.5 Kg

Gross Weight

17.0 Kg

Liquid Pipe

6.35 mm

Gas Pipe

5.88 mm

Condensate Drain

VP16

Packing Dimensions

445×1080×355 mm
