Installation Space-saving

Less than 270mm in height can be easily fit into the limited space in the false ceiling (7.5-24.2KBtu/h).

Flexibly Supports a Wide Range of Installation

When bottom air inlet is adopted, sound pressure will increase according to factors such as installation mode and the room structure.

Fresh Indoor Air

By introducing fresh outdoor air and being equipped with air filter to keep indoor air clean.

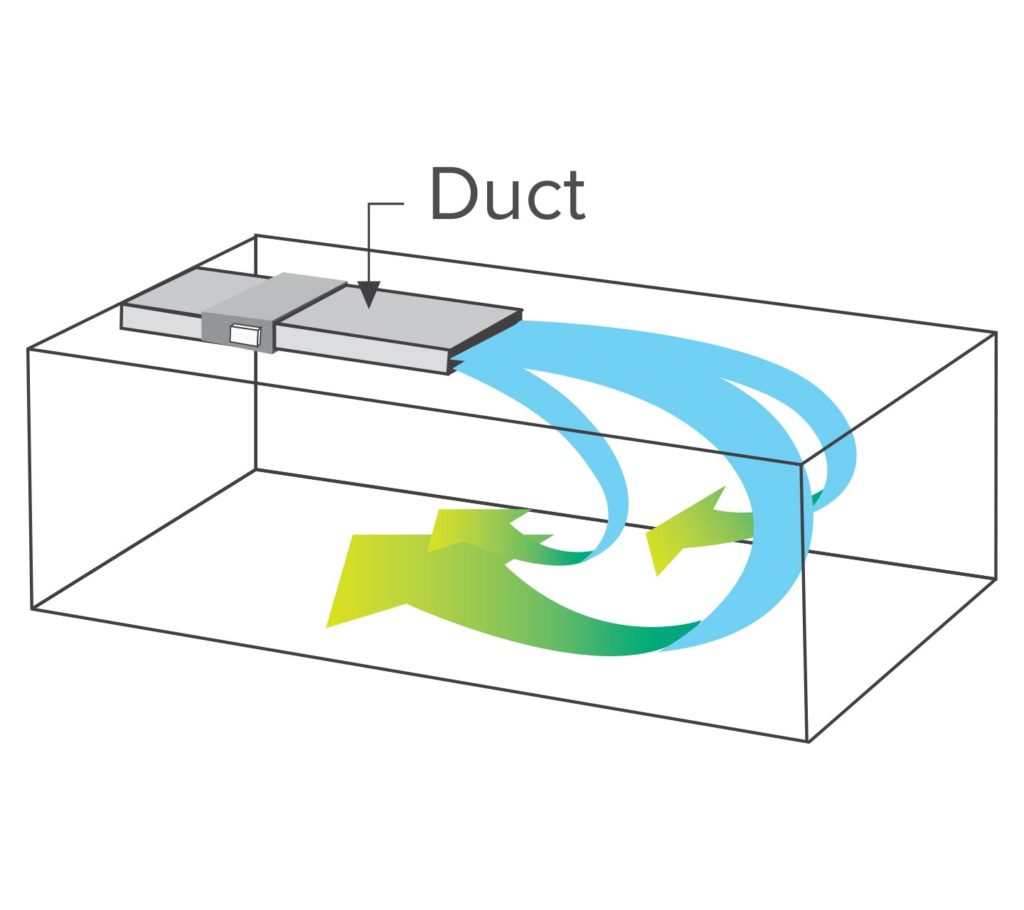

Excellent Air Flow

Cooling and heating air distributed from the unit to indoor space through ducts, which creates a comfortable environment.

Optional Parts

Drain pump can be supplied as optional part.


Slim and Compact Design


Flexible Pressure Option 30/10 Pa


Quiet Operation 25 dB


Inner Drainage Pan Design


Special design with hotel room card control


Special design with fire control system


Cooling Capacity

2.6 kW


220~240 VAC / 50Hz / 1Ph

Power Input

44 W

Rated Current

0.2 A

Anti Electric Shock

Class I

Degrees of Protection


Air Flow

520 m3/h

Noise Level Sound Pressure (Max/Min)

35/25 dB(A)

External Static Pressure

30/10 Pa


Net Dimension (WxHxD)

(700+70) x 190 x 600 mm

Net Weight

20 Kg

Package Dimension (WxHxD)

946 x 236 x 692 mm

Gross Weight

24 Kg

Diameter (Liquid)

6.35 mm

Diameter (Gas)

9.52 mm
