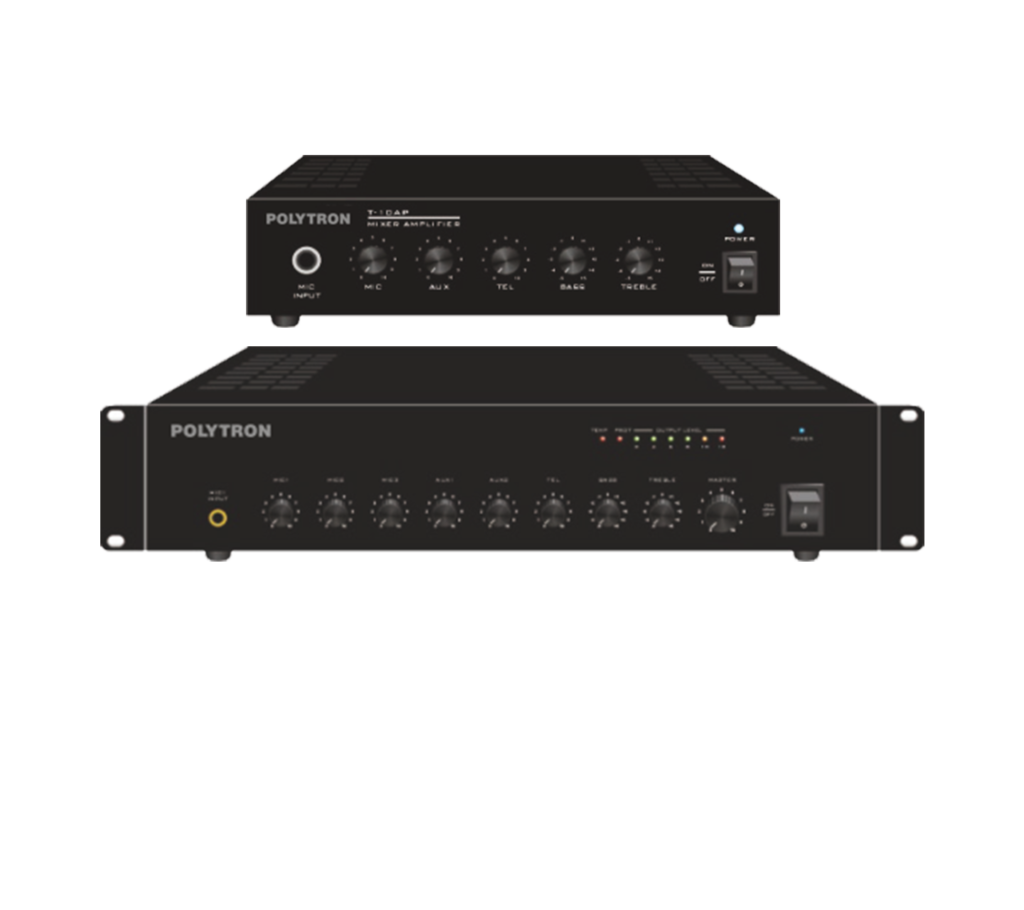

Public Address Mixer Power Amplifier

Beli

Noise Free

Power output with very low noise above 100 dB at maximum level produces maximum sound quality.

Various Protection

It is equipped with pressure protection, DC output, short circuit, impulse current when on and off and other circuit protection ensures users are safe.

LED Indicator

Various signal, limit and protection LED indicators to find out the working conditions of amplifiers.

Dual Fan (auto)

Keep the temperature under normal conditions.

Various Input Amplifier Mode

Stereo, mono, bridge, grounding lift, float switch and input sensitivity options can be set. Complete input / output connectors such as TRS Jack, Speakon, Binding posts.



20 – 120 Watt

Power Output



Bass & Treble

Control



Full

Protection

   Amplifier

   Power Output

   20 / 40 / 60 / 120 Watt

Speaker Output

4 – 16 Ohm, 70 V / 100 V

Input Sensitivity

Mic 1,2,3: 5mV/600 Ohm

   TEL: 175mV/10 kOhm

Aux: 350 mV/10 kOhm

Unbalance Input

Line Output Sensitivity

1 V/470 Ohm, Unbalance

Frequency Response

50 Hz – 16 kHz (+1dB, -3 dB)

Noise (SNR)

Mic: >66 dB, Aux: >80 dB

Distortion (THD)

<0.5% @ 1 kHz, 1/3 Rated Power

Control

Power switch, Vol Mic, Vol Aux, Bass, Treble

Indicator

Power, Clipping, Signal, Protect & High

   Ground Lift

   –

Cooling

Button Up covert automatic cool

Protection

Over Heat, Over Load, Clip & Sort Circuit

   Power Line

  AC 220 – 240 V 50/60 Hz

Power Consumption

40 / 70 / 100 / 200 Watt

   Physical

   Dimension (HxWxD)

   360x274x66 (PT-20/40/60AP)

484x303x88 (PT-60/120AP)

Net Weight

2.5 Kg / 3 Kg / 6.7 Kg / 7.8 Kg

   Rack Mounting

   2U (PT-60/120AP)
